With component sizes ever decreasing solder paste printers which are often referred to as stencil or screen printers have to provide high accuracy and repeatability to ensure that solder paste is deposited accurately onto solder pads.

The KPE range of proven printers starts with the manual Uniprint and encompasses the semi automatic systems FA23, Features can include under stencil wipe, assisted alignment and fully automatic PCB to stencil alignment. Frame from 23” to 29” can be accommodated, all systems are simple to use and provide for high flexibility.

SP150 AV - Stand alone Semi-automatic Printer

FA23 - Stand alone Semi-automatic Printer

FA23

Stand alone Semi-automatic Printer

The FA23 is an affordable fine pitch printer available with or without vision alignment. It's frontside shuttle makes it easy to load and unload PCB. The printer features a through-stencil vision system.

• Stand alone

• Vision alignment

• 23" stencil frames

• Parallel separation

• Fast changeovers

• Integrated stencil cleaner

• Programmable print speed

• Substrate thickness easily adjustable

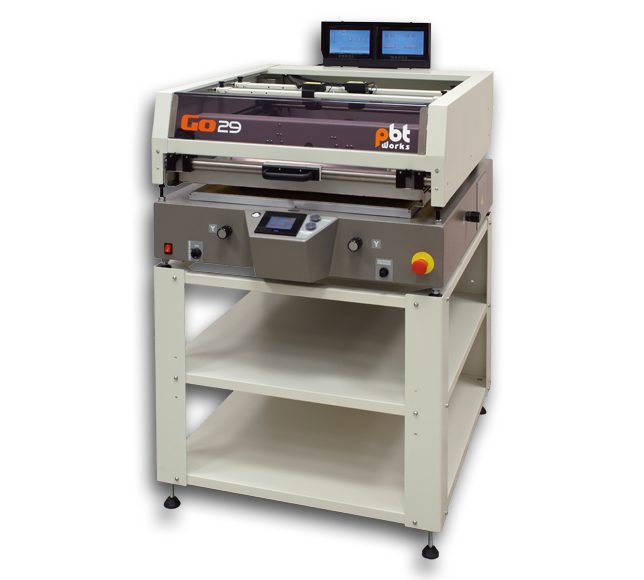

GO29 - Semiautomatic Printer

GO29

Semiautomatic Stencil Printer

The GO29 Semi-automatic off line stencil printing machine with camera aided alignment. Ideal for small productions and capable of handling 29" stencils. The adjustable stencil holder enables smaller stencils to be held and used within the system.

• Stand alone

• Vision alignment

• 29" Stencils

• Adjustable stencil clamps

• Print area 600x540mm

SP002 - Manual Finepitch Printer, Guided Squeegee

Uniprint - Manual Finepitch Printer, Guided Squeegee

Uniprint

Manual Finepitch Printer, Guided Squeegee

Easy to use but highly accurate and reliable printing system. Precise mechanical adjustment and excellent repeatability. Precise squeegee guidance with double squeegee.

• Holders for PCB, flex or ceramic

• Squeegee guidance for precise printing

• Gas spring support for frame opening

• Precise x/y/theta fine adjustment

• Test print frame for quick setup

Screen Printing Equipment

Here is a small selection of screen printing equipment available from Key Production Equipment Ltd. If you require information or details on other systems which may suit your requirements better please contact us.
